GL- H40EL AUTOMATIC CAN SEAMER MACHINE
Automatic seamer machine
Can size: 502D-700D
(Specific for Milk powder cans, food cans and paint cans )
Add to inquiry
Can size: 502D-700D
(Specific for Milk powder cans, food cans and paint cans )
FEATURES
Can Making Machine – GL-H40EL Automatic Can Seamer is constructed with 4 seaming heads. It is suitable for 3-piece large diameter tin cans such as milk powder cans, food cans and paint cans. It provides a precision seaming capacity of 200 cans per minute in maximum. The machine integrates many safety devices ensuring positive and safe double seaming operation. The frequency inverter is available for variable speed running. Can size changeover is easily and quickly accomplished.

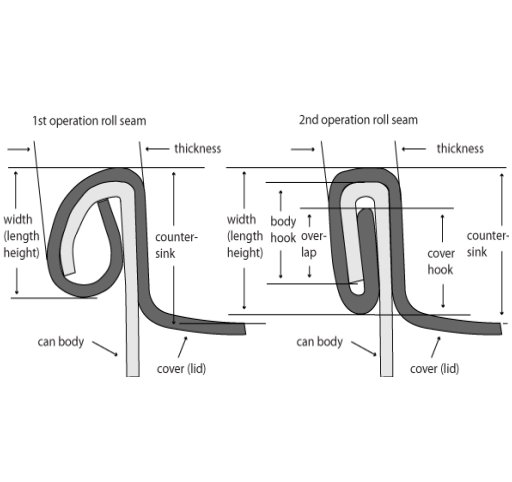

SEAMED OPERATION
SPECIFICATIONS
|
Model |
GL- H40EL |
|
Heads |
4H |
|
Range of Can Diameter |
502D - 700D (127 - 175 mm) |
|
Range of Can Height |
100 - 240 mm |
|
Capacity Per Minute |
100 - 200 cpm |
|
Horsepower Required |
10 HP |
|
Can Feed Height |
900 mm |
|
Can Discharge Height |
900 mm |
|
Dimensions (L x W x H) |
2570 x 1250 x 2303 mm |
|
Net Weight (Approx.) |
kgs |
